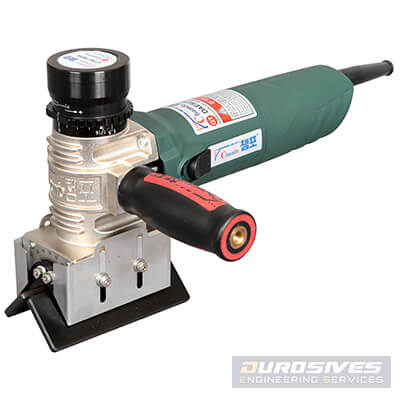

CHAMFO Portable Beveling Machine Model : GTW-700W

SPECIFICATIONS
Brand	CHAMFO
Height Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Plate beveling for weld preparation
Maximum Bevel range	Deg. / 45°	Thickness (inch) / 5 mm (0.197)	Width (inch) / 15 mm (0.276)
Weight	2.8kg
Power	700W
Inserts	2EA (CFWB080350 / CFWB080149)
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials

Chamfo Special Declad/bevel Machine For Tee/Elbow Model : TGTP-3LTP

SPECIFICATIONS
Brand	CHAMFO
Capacity	O/D 0° / 30° / 37.5° / 45° I/D
Bevel Adjustment	One-touch spline controller
Adjustment increments	min. 0.05mm step
Range of beveling	Width: 0~15mm / 0.075~3mm
Piping parts Size	min. 32A(42.7mm / 1 1/4") / max.250A(267.3mm / 10")
Inserts PN	CF100iC / CFWB080149 / A/L SC1
Power	AC 220V 60Hz / 1.5Kw / 8.7A
Weight	120kg
Application	Pipe / Piping parts(Elbow / Tee) beveling

Coating Remover (I/D) - For Elbow, Tee & Reducer application

SPECIFICATION
Model	D-100	D-150
Height Adjustment	One-touch spline controller
Adjustment Increments	Minimum 0.1mm step
Usages	Coating removal for weld preparation
Removable Coating Range	Width: 15mm / Depth: -3mm
Weight	2.8kg	2.9kg
Power	850W
Inserts	3EA / CFWB080149
Pipes Size	50A / 80A / 100A	100A / 125A / 150A
Applications	Steel (carbon steel, stainless steel), Non-ferrous metal, other materials

Weld preparation for plate & inner pipe (For profile bevel, int/ext bevel – up to 9C)

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Plate and pipe beveling (Curve and Hole)
Weight / Power	6.0 kg / 1700W (or 1400W)
Pipe size	min. 36 mm (I/D)
Inserts Tip Q’TY / PN	3 / APMT-1604PDSR-MM

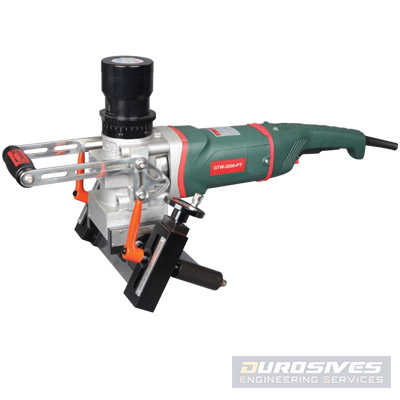

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Decladding machine for plate or layer machining
Milling Range	Width direction: max. 50mm / Depth direction: max.13mm
Insert Angle	30° / 45° / 90° (Selection)
Weight / Power	14.5kg / 2600W
Inserts Tip Q’TY / PN	3 / CFWB140350 / CFWB140149
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Internal / external pipe, plate & curved surface plate beveling O/D : min. 420mm I/D min.700mm (18C), 800mm (19C), 1000mm (20C) or bigger
Weight / Power	15.8kg / 2600W
Inserts Tip Q’TY / PN	4 / CFWB140350 / CFWB140149
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials

Weld preparation for small pipe & plate (For small pipe bevel – up to 6C)

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Plate & Pipe's beveling for weld preparation
Min. Pipe size	15A (21.7mm or 1/2") ~ 250A (267.3mm or 10")
Weight / Power	3.2kg / 850W
Inserts Tip Q’TY / PN	3 / CFWB080350 / CFWB080149
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials

Weld preparation for pipe & plate (For pipe/plate bevel – up to 10C)

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Plate & Pipe's beveling for weld preparation
Pipe size	min. 40A (48.6mm or 1 1/2 ") ~ max. ∞
Weight / Power	5.2kg / 1080W
Inserts Tip Q’TY / PN	3 / CFWB110350 / CFWB110149
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials

Beveller for Weld Preparation (For flange application – up to 15C)

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Beveling of the Pipe and Flange (I/D and O/D), Plate and Circular plate
Min. Pipe Size	190mm (O/D) / 330mm (I/D)
Weight / Power	7.2 kg / 1700W or 1400W
Inserts Tip Q’TY / PN	3 / CFWB110350 / CFWB110149
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials
