Chamfo Special Declad/bevel Machine For Tee/Elbow Model : TGTP-3LTP

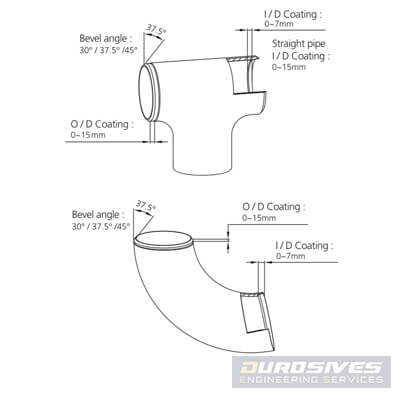

Decladding of Elbow

Chamfo Special Declad/Bevel machine for piping parts, elbows and Tee. For pipe sizes up to 10″(OD)

SPECIFICATIONS
Brand	CHAMFO
Capacity	O/D 0° / 30° / 37.5° / 45° I/D
Bevel Adjustment	One-touch spline controller
Adjustment increments	min. 0.05mm step
Range of beveling	Width: 0~15mm / 0.075~3mm
Piping parts Size	min. 32A(42.7mm / 1 1/4″) / max.250A(267.3mm / 10″)
Inserts PN	CF100iC / CFWB080149 / A/L SC1
Power	AC 220V 60Hz / 1.5Kw / 8.7A
Weight	120kg
Application	Pipe / Piping parts(Elbow / Tee) beveling
